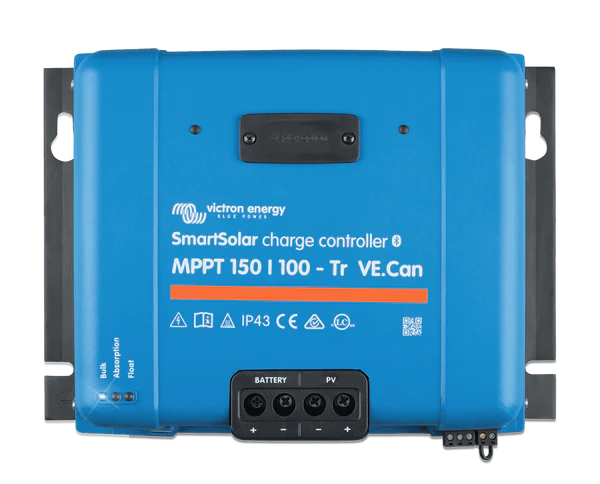

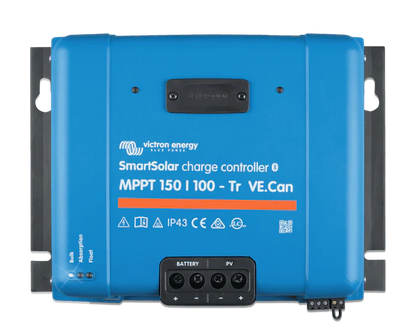

Victron 12/24/48V 100A SmartSolar MPPT 150/100-Tr VE.CAN Bluetooth Solar Charge Controller

Victron SmartSolar MPPT 150/100-Tr VE.CAN (12/24/48V)

Built for large solar arrays and high-capacity battery banks, the Victron SmartSolar MPPT 150/100-Tr VE.CAN is Victron’s most powerful 150V MPPT controller—delivering an impressive 100A charging output, ultra-fast MPPT tracking, and professional-grade system integration.

Extract More Power From Every Panel

Ultra-Fast MPPT Technology

SmartSolar continuously tracks the optimal power point—even when sunlight is constantly changing:

• Up to 30% more energy than PWM controllers
• Up to 10% more yield than standard MPPTs
• Superior charging performance on cloudy or unstable days

 Optimised for Partial Shading

Traditional MPPT controllers can get “stuck” on the wrong power point when panels are shaded.

Victron’s advanced MPPT algorithm:

• Detects multiple power points
• Locks onto the true optimal MPP
• Maximises energy harvest even with partial shading

 Massive 100A Charging Power

Designed for large battery banks and high-demand systems, the 150/100 is ideal for:

• High-capacity lithium (LiFePO₄) systems
• Large lead-acid battery banks
• Multi-string solar arrays up to 150V

Smart Monitoring — Built In

No dongles. No extra hardware.

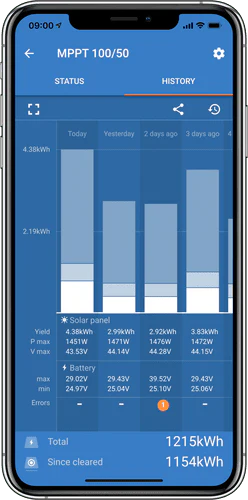

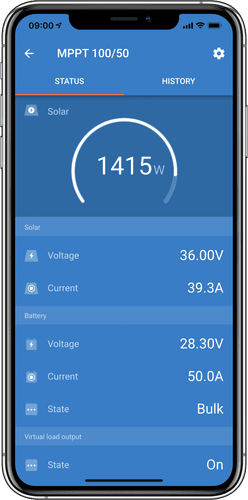

With Bluetooth Smart built-in, you can:

• Monitor live system performance
• Configure charging profiles
• Update firmware wirelessly
• Diagnose issues instantly

All from the VictronConnect app on iOS or Android.

Silent, Cool & Ultra-Efficient

• Fanless design for silent operation
• 98%+ peak efficiency
• Reduced heat for longer component life

 Industrial-Grade Protection

Your investment is protected with:

• Over-temperature protection & automatic power derating
• PV short-circuit protection
• PV reverse polarity protection
• PV reverse current protection

Fully Programmable Charging

Adapt charging precisely to your battery system:

• Fully programmable charge algorithms
• 8 pre-configured charging profiles selectable via rotary switch
• Automatic temperature-compensated charging via internal sensor
