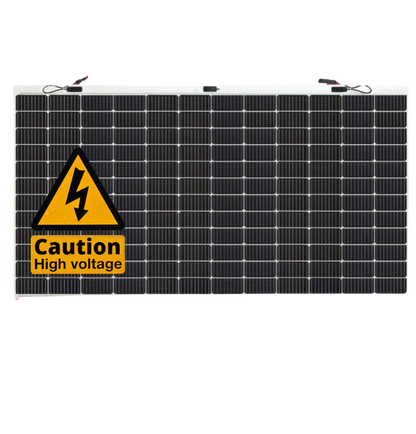

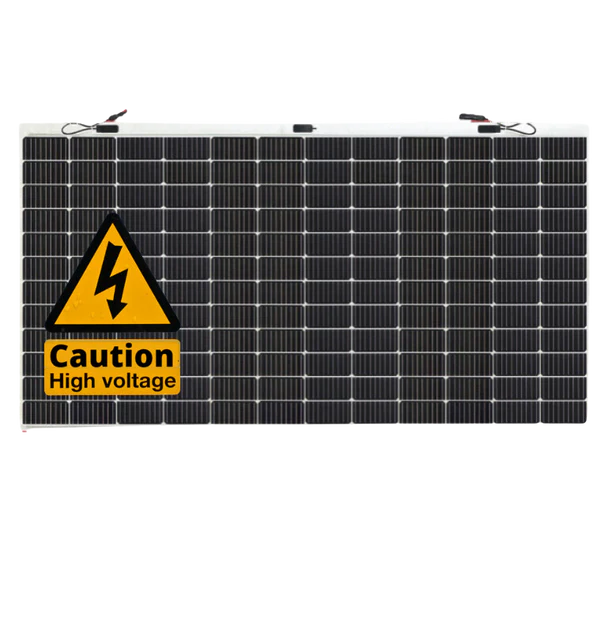

Sunman eArc 430W Flexible Solar Panel

Sunman eArc 430W Flexible Solar Panel

High-Power • Ultra-Light • Built for Demanding Applications

Unlock serious solar power without the weight of traditional glass panels. The Sunman eArc 430W Flexible Solar Panel combines next-generation Mono-PERC technology with a lightweight, glass-free design — delivering exceptional output, durability, and flexibility for both mobile and fixed installations.

Why the Sunman eArc 430W Stands Out

More power. Less weight. Zero compromise.

• 430W High-Output Performance
  Newly improved, compact Mono-PERC monocrystalline cells maximise energy production and efficiency, even in challenging conditions.
• Ultra-Lightweight & Exceptionally Durable
  Manufactured using a patent-pending composite material similar to aeroplane windows, eliminating the need for heavy glass or rigid frames while maintaining outstanding strength.
• Flexible Installation Design
  Easily installs on curved or uneven surfaces, opening up solar possibilities where conventional panels simply won’t work.

Australian-Approved & Industry-Endorsed

1. CEC-approved for residential and commercial installations
2. Endorsed by the Clean Energy Finance Corporation (CEFC) and Australian Renewable Energy Agency (ARENA)
3. Industry-Leading Warranty

• 10-year product warranty for building installations
• 5-year product warranty for mobile applications

Optional Mounting Solutions (Choose Your Setup)

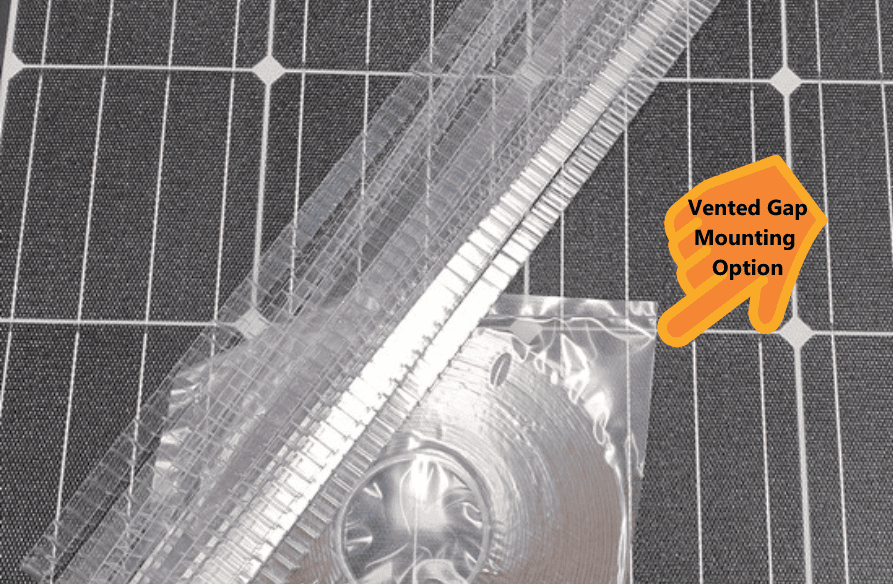

• Vented Gap Kit
  Improves airflow, increases efficiency, and reduces surface heat
  (~15mm height increase; includes high-bond adhesive tape & polycarbonate strips)
• High-Bond Double-Sided Adhesive Tape
  Low-profile, clean mounting solution for smooth surfaces
  (2.3mm H × 12mm W × 16.5m length)
• Structural Silicone (Fix8)
  Strong, permanent adhesion for demanding environments

24V Solar Panel – Compatible with 12V & 24V Battery Systems

• 12V Battery Systems
  Pair with an MPPT solar charge controller for maximum charging efficiency.
• 24V Battery Systems
  Compatible with MPPT or PWM charge controllers for effective 24V charging.

 Important Product Notes

• Surface Appearance:
  Light swirl lines may be visible on the front sheet. These are a normal result of the manufacturing process and are present on all eArc panels — they do not affect performance or durability.
• Batch Variations:
  Minor manufacturing changes may occur between production batches. If adding this panel to an existing array, please contact our sales team to confirm compatibility.
