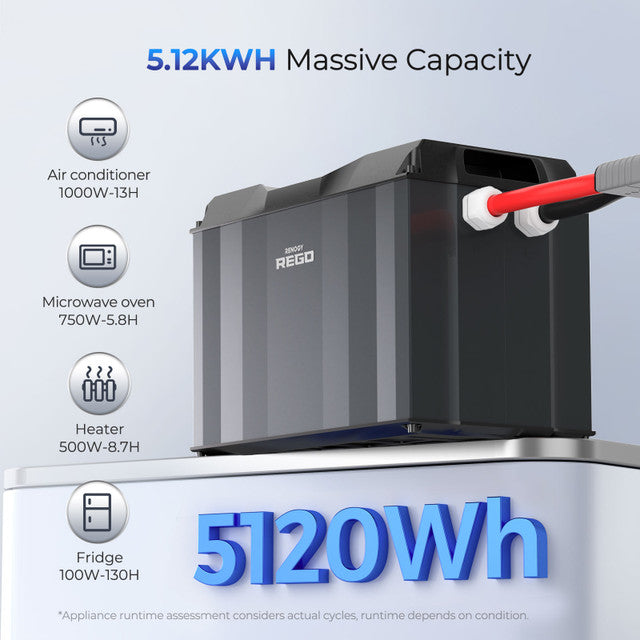

Renogy Rego Series 12V 400A Lithium Iron Phosphate Battery

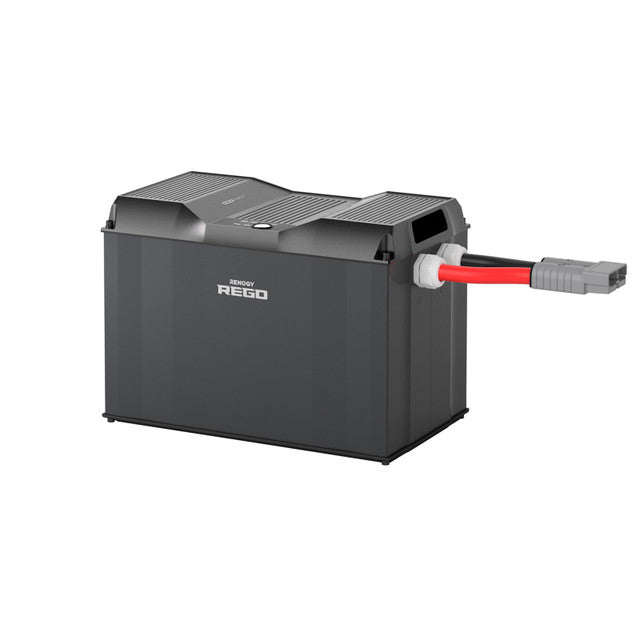

Renogy REGO Series 12V 400Ah LiFePO₄ Battery

5.12kWh of uncompromising power. Built for the toughest demands.

The Renogy REGO Series 12V 400Ah Lithium Iron Phosphate Battery is a high-capacity, professional-grade energy solution designed for users who need maximum runtime, extreme durability, and long-term reliability. With a massive 5.12kWh energy capacity, this battery is engineered for off-grid homes, marine systems, RVs, and high-draw applications where performance cannot be compromised.

Built around premium LiFePO₄ chemistry and housed in a rugged die-cast and extruded aluminium enclosure, the REGO Series delivers industrial-level strength with intelligent energy management — ready for years of demanding use.

 Massive capacity. Serious output.

With 400Ah at 12.8V, this battery provides exceptional energy density in a single unit. High continuous charge and discharge currents allow it to support powerful inverters, heavy appliances, and demanding electrical loads with ease — eliminating the need for complex multi-battery setups.

Designed exclusively for parallel connections (up to 8 batteries), the system scales cleanly and safely to deliver over 40kWh of total capacity for large off-grid installations or extended runtime requirements.

Automatic self-heating for cold-weather reliability

Integrated automatic self-heating ensures safe and reliable charging in low-temperature environments. When conditions drop, the battery intelligently warms itself to maintain optimal performance — keeping your system running when other batteries fail.

 Built like industrial equipment

The REGO Series isn’t just powerful — it’s engineered to last:

• Die-cast & extruded aluminum housing for superior structural strength
• IP65 protection against dust and water ingress
• Advanced internal protections to handle vibration, high loads, and harsh environments

This is a battery built for real-world conditions, not controlled lab setups.

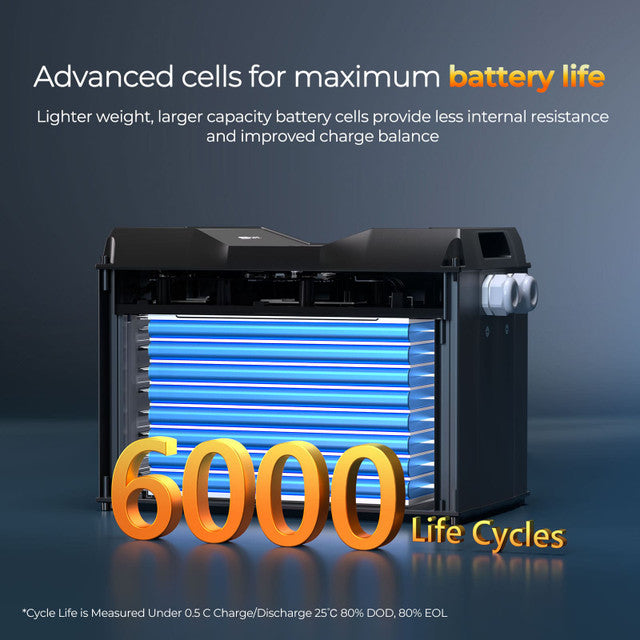

 Exceptional longevity

Delivering 6,000 cycles at 80% depth of discharge, the REGO Series dramatically outlasts traditional lead-acid and standard lithium batteries — reducing replacement costs and long-term ownership expenses while ensuring dependable power year after year.

 Key features

• 5.12kWh high-capacity LiFePO₄ battery
• 400Ah output with high continuous charge & discharge currents
• Automatic self-heating for cold-climate operation
• 6,000-cycle lifespan at 80% DOD
• Parallel expansion up to 8 batteries
• Die-cast aluminium housing & IP65 protection
• 5-year material & workmanship warranty

Technical specifications

Electrical

1. Battery Type: Lithium Iron Phosphate
2. Rated Capacity: 400Ah
3. Nominal Voltage: 12.8V
4. Voltage Range: 10–14.8V
5. Energy: 5120Wh
6. Cycle Life: 6000 cycles (80% DOD @ 25°C)
7. Connection: Parallel (up to 8)
8. Self-Heating: Yes

Charging

1. Charge Voltage: 14.4V
2. Max Continuous Charge Current: 300A
3. Charge Cut-off Voltage: 14.8V

Discharging

1. Max Continuous Discharge Current: 350A
2. Discharge Cut-off Voltage: 10V

Environmental

1. Charge Temp: 0–55°C
2. Discharge Temp: −20–55°C
3. Storage Temp: −30–60°C (short term), −20–45°C (long term)

Physical

1. Dimensions: 457 × 267 × 329 mm
2. Weight: 51 kg
3. Housing: Die-Cast / Extruded Aluminium
4. Protection Rating: IP65

Certifications

1. IEC62619 / IEC62620
2. UN38.3
3. FCC
4. UL1973
