Renogy REGO 12V 3000W HF Pure Sine Wave Inverter Charger – 240VAC

Renogy REGO 12V 3000W HF Pure Sine Wave Inverter Charger – 240VAC

The Renogy REGO HF Inverter Charger is a next-generation, high-frequency all-in-one power solution engineered for modern off-grid, caravan, marine, and backup power systems. Delivering 3000W of continuous pure sine wave power with an incredible 9000W surge capability, the REGO series offers serious performance in a lighter, more compact form factor.

High-Frequency Power with Extreme Surge Capability

• 3000W continuous output for everyday and high-load appliances
• Up to 9000W surge power — ideal for compressors, pumps, fridges, air tools, and motor start-ups
• >90% peak efficiency, maximising battery runtime

HF technology allows higher surge power with less weight and faster response than traditional low-frequency designs.

Clean, Grid-Quality Pure Sine Wave Output

• 240VAC pure sine wave output
• 50 / 60Hz selectable (±0.1Hz stability)
• Safe for sensitive electronics, lithium battery systems, and motor-driven devices

Your appliances receive true mains-quality electricity, not modified power.

Advanced Smart Battery Charger (Built-In)

The integrated charger supports a wide range of battery chemistries:

• SLD, AGM, GEL, Flooded, Lithium, and USER-defined profiles
• Configurable charge current: 5A–150A (5A increments)

Optimise charging speed, battery health, and system efficiency—all from one unit.

Ultra-Fast Transfer & Quiet Operation

• Automatic transfer time ≤ 20ms — seamless power switching
• 16A transfer relay rating
• Low operating noise (<54 dB)

Perfect for generator, grid, or hybrid solar systems where stability matters.

Built for Harsh Environments

Designed to perform where others fail:

• Operating temperature: -20°C to 45°C
• Storage temperature: -40°C to 70°C
• Humidity tolerance: 0–95% RH

Ideal for touring, remote installations, and extreme climates.

Technical Specifications

Inverter Output

• Rated / Continuous Power: 3000W
• Surge Power: 9000W / 9000VA
• Output Voltage: 240VAC
• Output Frequency: 50 / 60Hz (±0.1Hz)
• Output Waveform: Pure Sine Wave
• Nominal Efficiency: >90% (Peak)

DC Input

• Nominal DC Voltage: 12V
• DC Input Range: 9–17V DC

AC Input (Utility / Generator)

• Input Voltage Range: 187–265VAC
• Input Frequency Range: 45–65Hz

Charging & Transfer

• Charging Current: 5–150A (Configurable)
• Transfer Time: ≤ 20ms
• Transfer Rating: 16A

Physical

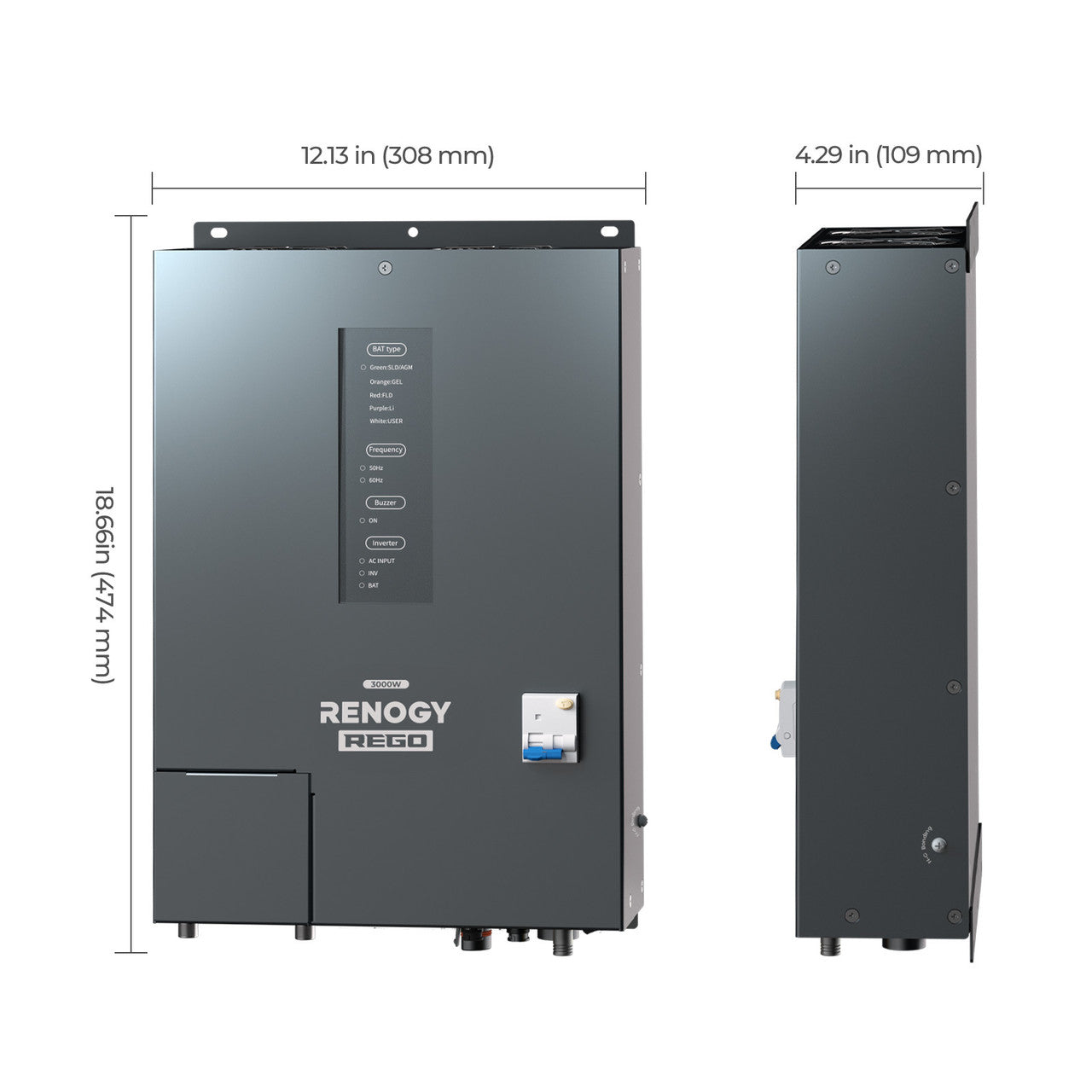

• Dimensions: 474 × 308 × 109 mm
• Weight: 8.8 kg
• Noise Level: <54 dB
