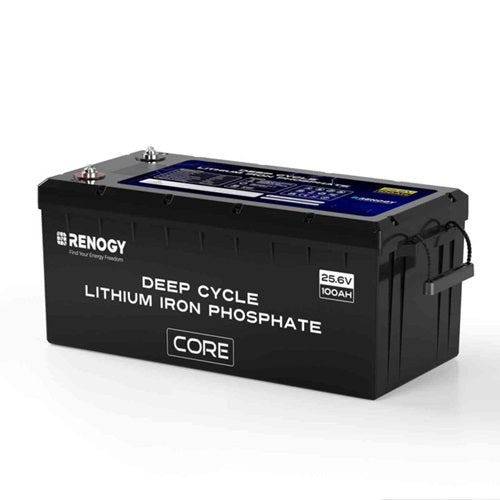

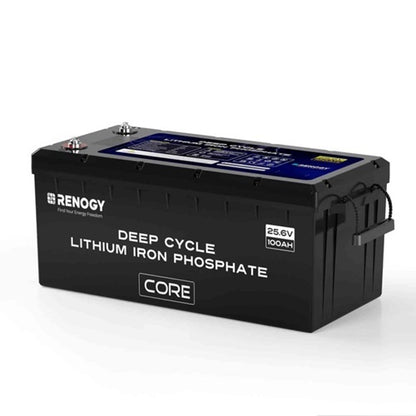

Renogy 24V 100Ah Core Series LiFePO₄ Battery

Renogy 24V 100Ah Core Series LiFePO₄ Battery

The Renogy 24V 100Ah Core Series Lithium Iron Phosphate (LiFePO₄) Battery is engineered for users who demand efficient power delivery, long service life, and rock-solid reliability — whether on the road, off-grid, or backing up critical systems.

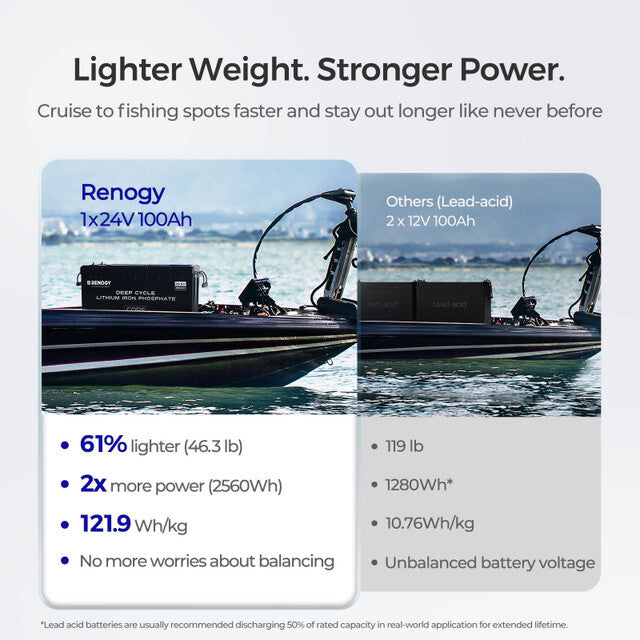

Built with automotive-grade (Grade A) prismatic cells, this battery delivers high energy density while significantly reducing overall weight. The result is smoother cruising for RVs, marine setups, and mobile power systems — without sacrificing capacity or durability.

With industry-leading scalability, you can expand your system up to 40.96kWh by connecting up to 16 batteries in series-parallel, ensuring uninterrupted power during extended blackouts or high-demand applications. Flexible wiring options allow up to 8 batteries in parallel or 2 in series, making system design simple and adaptable.

Why choose a 24V LiFePO₄ system?

A single 24V battery delivers cleaner, more efficient power with 30% less wiring compared to dual 12V setups. Pre-matched cells ensure balanced voltage from the start, while the programmable BMS automatically manages cell balancing during charging — eliminating complexity, inefficiency, and messy wiring.

 Built for longevity & peace of mind

Designed for extreme environments and long service life, the Core Series battery offers 5,000 cycles at 80% depth of discharge, translating to up to 10 years of reliable use — far outperforming traditional lead-acid batteries.

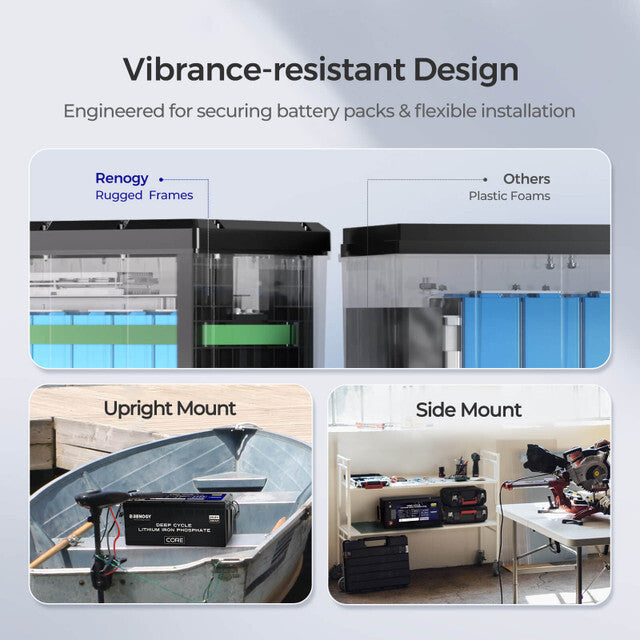

An integrated 200W self-heating system enables safe charging in cold conditions, while low-temperature cut-off, vibration-resistant framing, and IP65 protection ensure dependable performance wherever you deploy it.

Key features

• EV-class Grade A cells with 5,000-cycle lifespan (80% DOD)
• 24V architecture for higher efficiency & reduced wiring

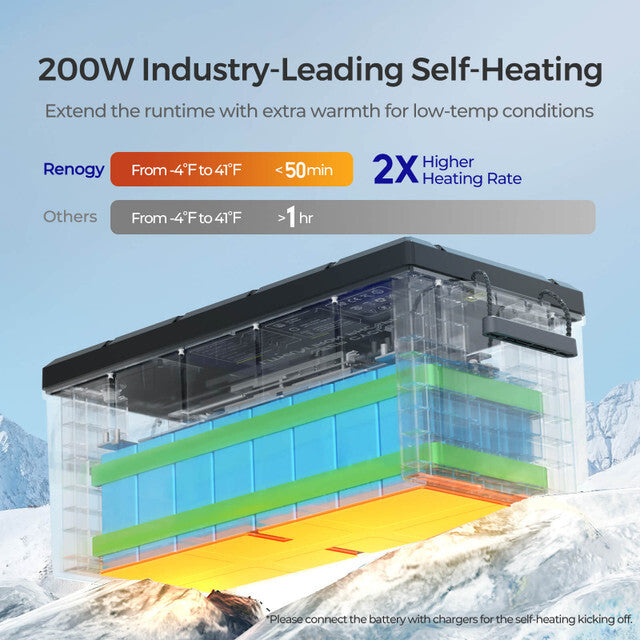

• Industry-leading 200W self-heating for cold climates
• Automatic cell balancing via intelligent BMS
• Expandable up to 40.96kWh (16 batteries)

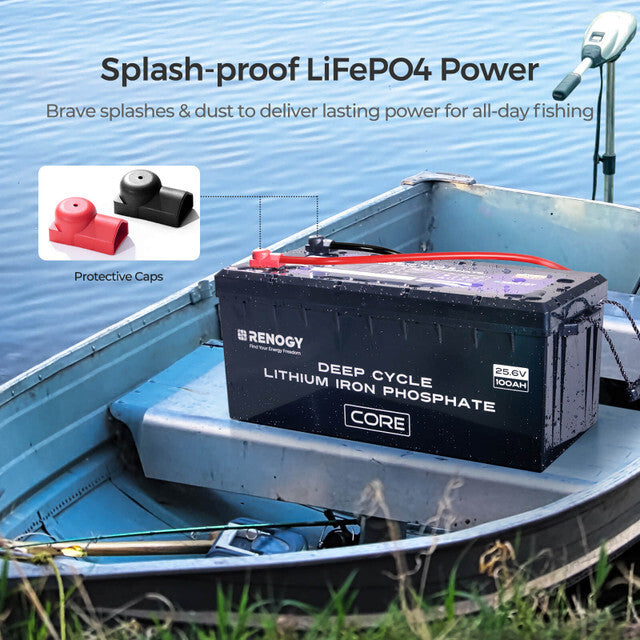

• Vibration-resistant design & IP65 protection

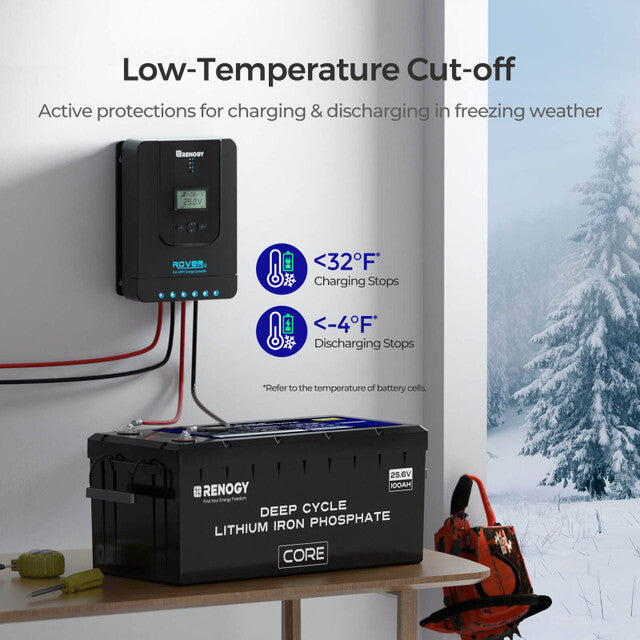

• Safer charging & discharging with low-temperature cut-off

 Technical specifications

• Rated Capacity: 100Ah
• Nominal Voltage: 25.6V
• Energy: 2560Wh
• Cycle Life: 5,000 cycles (80% DOD, 80% EOL)
• Charge Temperature: −20°C to 55°C
• Discharge Temperature: −20°C to 60°C
• Storage Temperature: −25°C to 65°C
• Dimensions (L×W×H): 522 × 240 × 219 mm
• Weight: 21.0 kg
• Charge Voltage: 29V
• Max Continuous Charge / Discharge: 100A
• Peak Discharge: 300A @ 5s
• Terminal Size: M8 × 1.25 × 15 mm
• Protection Rating: IP65
• Self-Heating: Yes

Backed with confidence

The Renogy 24V 100Ah Core Series LiFePO₄ Battery comes with a 5-year material warranty and international safety certifications (MSDS, UN38.3, FCC, PSE, CE, UKCA), ensuring peace of mind with every installation.
