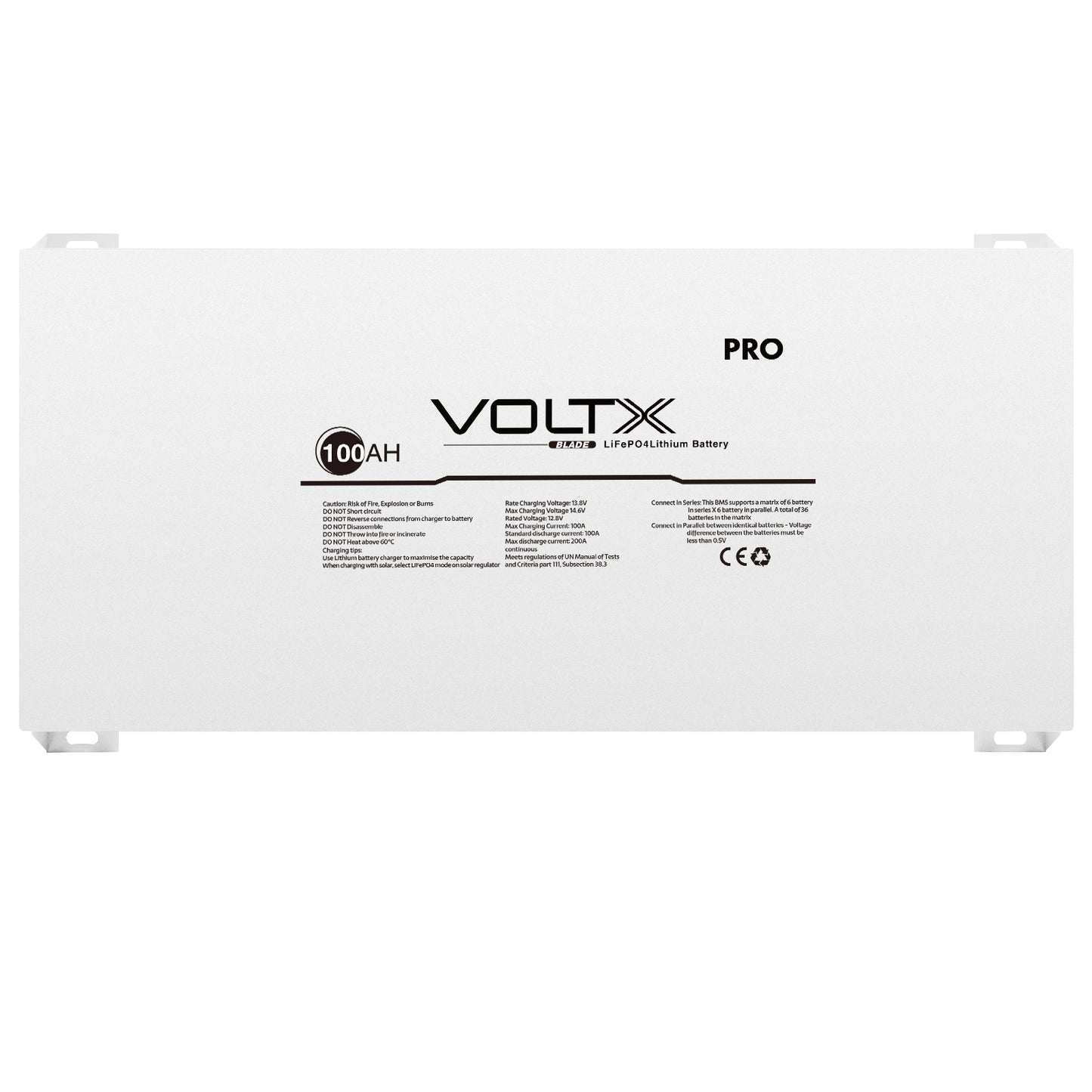

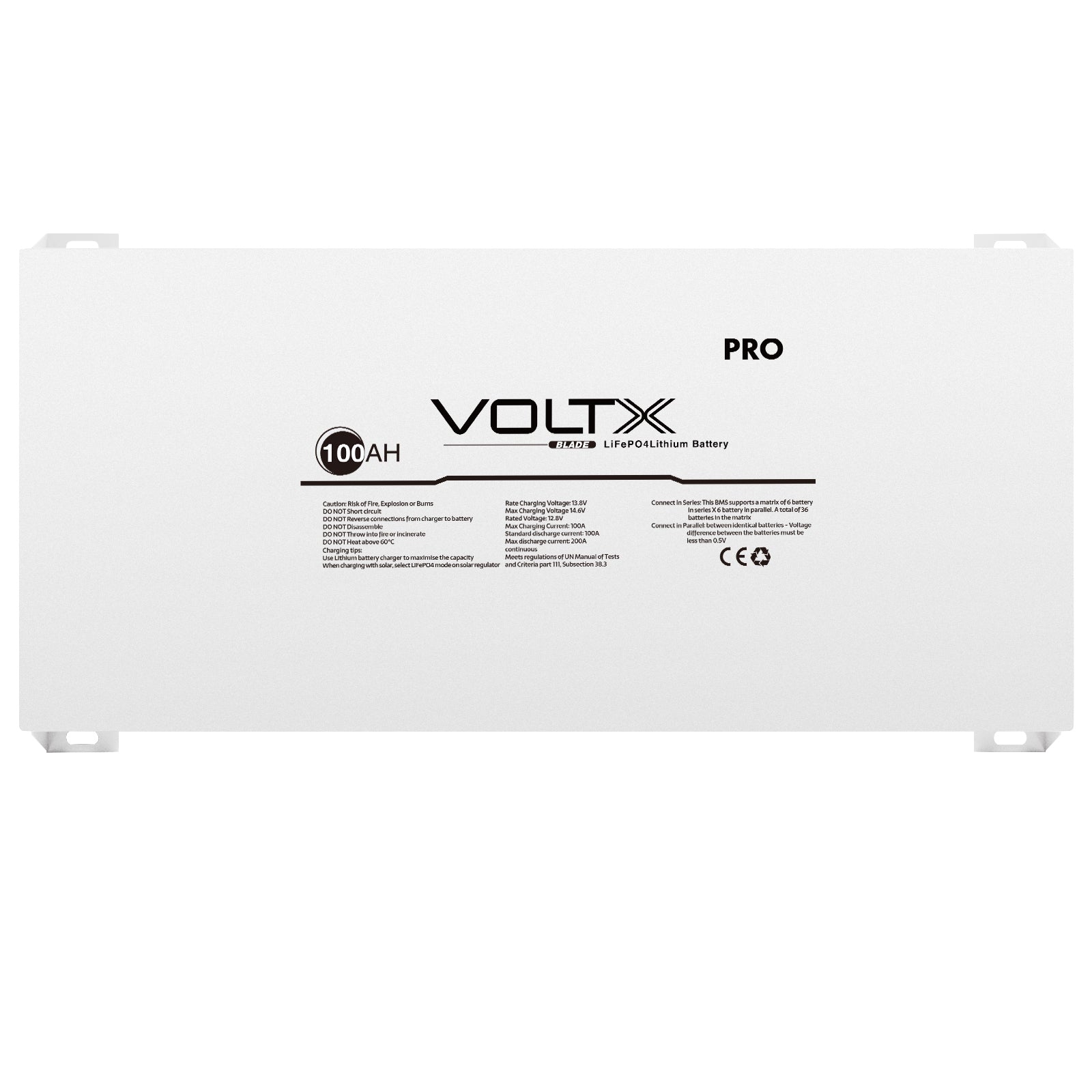

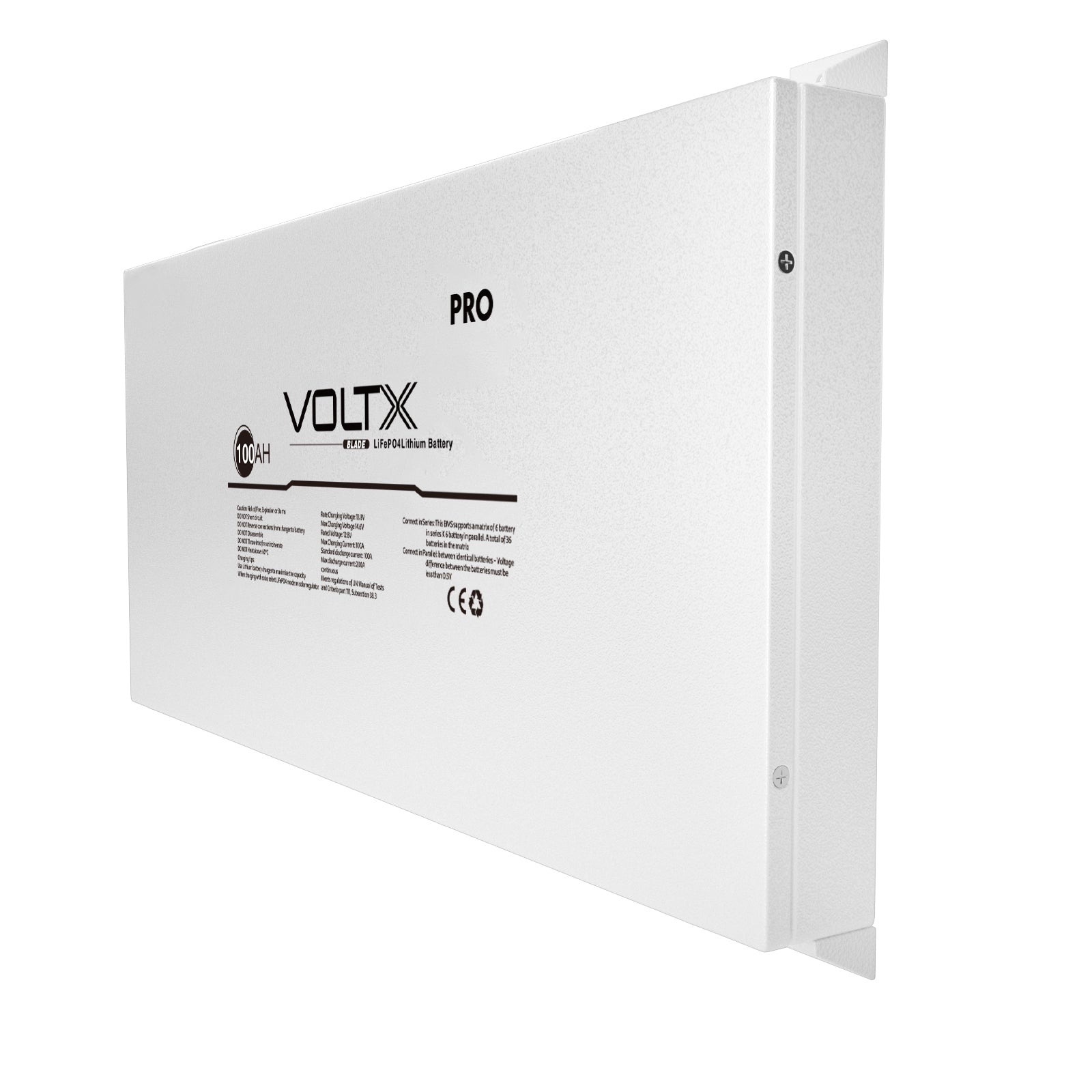

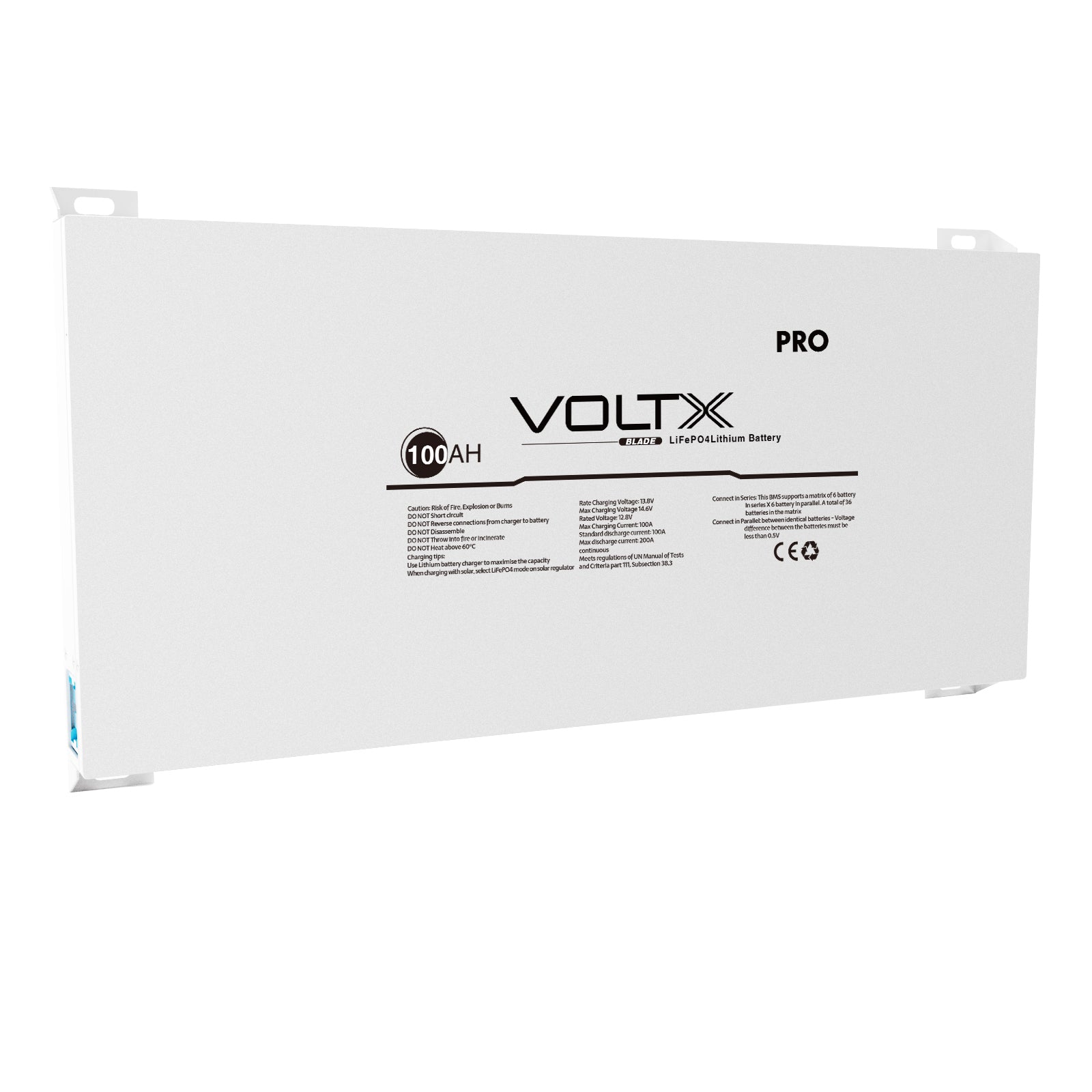

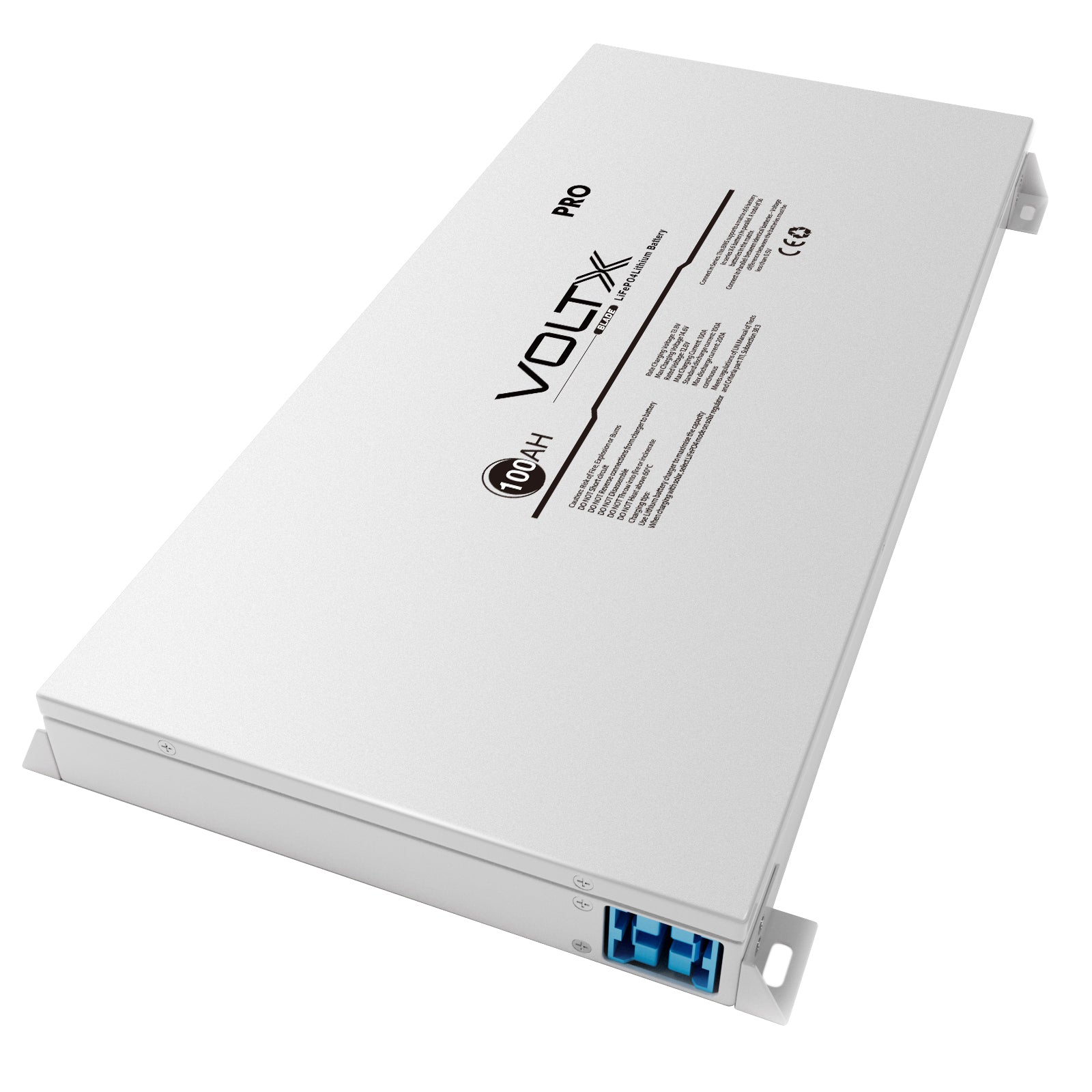

VoltX 12V 100Ah Blade Lithium Ion Battery

VoltX 12V 100Ah Blade Lithium Battery (LiFePO₄)

The VoltX 12V 100Ah Blade Lithium Battery is a high-performance deep-cycle LiFePO₄ battery designed for modern off-grid, caravan, camping, and solar power systems. With its ultra-slim blade design, long cycle life, and powerful discharge capability, it delivers reliable energy storage where space, weight, and durability matter most.

Whether you’re building a compact 4WD setup, upgrading a caravan battery system, or expanding a solar storage solution, this battery provides dependable power day after day.

Long-Life LiFePO₄ Technology

Built using prismatic LiFePO₄ cells, this battery is engineered for longevity and safety. With an impressive 4000 cycle life, it significantly outlasts traditional AGM or lead-acid batteries — making it a smarter long-term investment.

• Stable chemistry for enhanced safety
• Consistent voltage under load
• Excellent performance in demanding conditions

Designed for daily cycling without compromise.

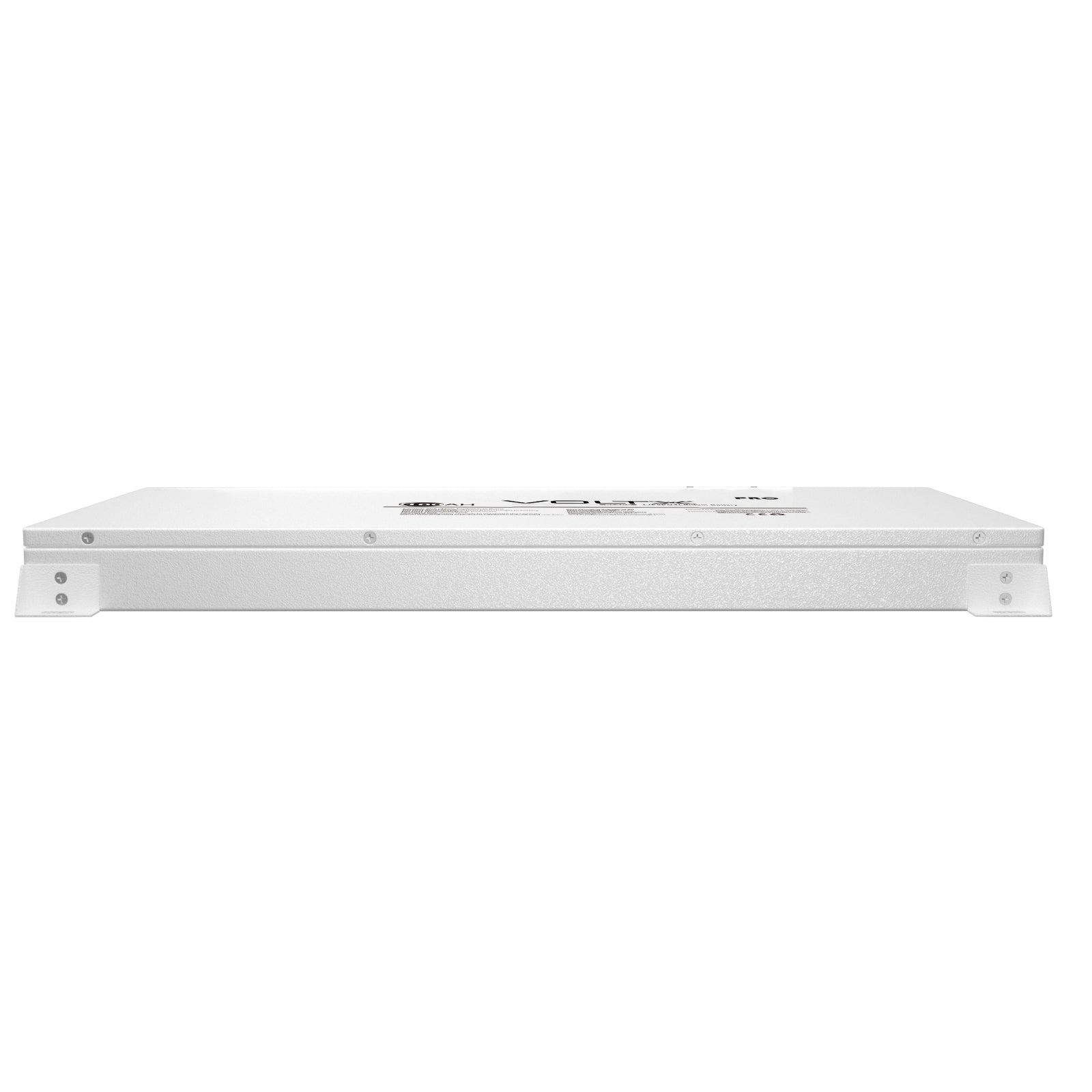

Slim Blade Design for Tight Installations

The blade-style profile (just 65mm high) allows this battery to fit where conventional batteries can’t. It’s ideal for:

• Under-seat caravan installs
• Drawer systems in 4WDs
• Slim battery boxes
• Custom solar enclosures

Despite its compact size, it delivers a full 100Ah of usable capacity.

High Power Output When You Need It

With a maximum discharge current of 600A (5 seconds), the VoltX Blade Battery easily handles high-draw loads such as inverters, compressors, and power tools.

Perfect for pairing with:

• Inverters for 240V power
• DC-DC chargers
• Solar charge controllers
• Portable power systems

Efficient Charging & Wide Operating Range

Optimised for lithium charging systems, this battery supports a 14.6V charge voltage at 20A, ensuring fast and efficient recharging.

It’s built to perform in Australian conditions:

• Charge temperature: 0°C to 45°C
• Discharge temperature: -20°C to 60°C

Reliable power whether you’re in the outback heat or alpine cold.

Lightweight & Easy to Handle

At just 15.3kg, this lithium battery is dramatically lighter than equivalent AGM batteries, making installation and transport easier — without sacrificing performance or capacity.

Ideal For

• Camping & 4WD setups
• Caravans & motorhomes
• Solar battery storage
• Inverter systems
• Backup & off-grid power solutions

Key Specifications

• Nominal Voltage: 12.8V
• Usable Capacity: 100Ah
• Cycle Life: Up to 4000 cycles
• Battery Type: LiFePO₄ (Prismatic cells)
• Charge Voltage: 14.6V (20A)
• Max Discharge Current: 600A (5 sec)
• Operating Temperature:

1. Charge: 0°C to 45°C
2. Discharge: -20°C to 60°C

• Dimensions: 600 × 65 × 270mm
• Weight: 15.3kg
